002440161 Obsolete

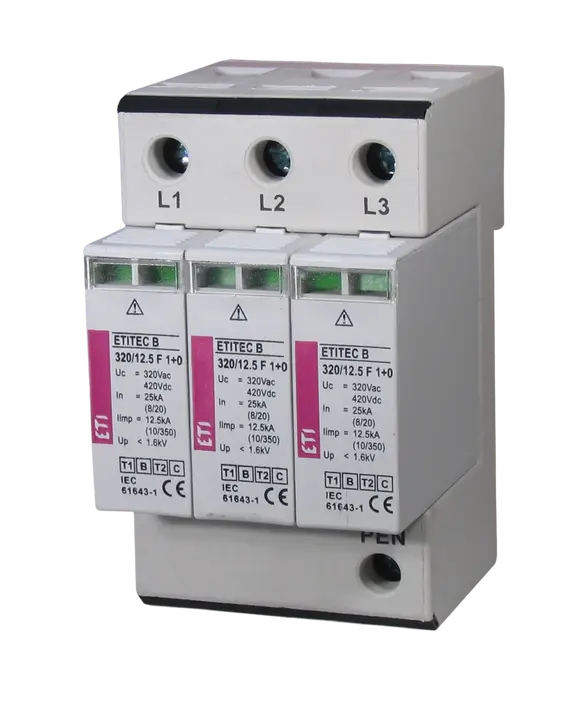

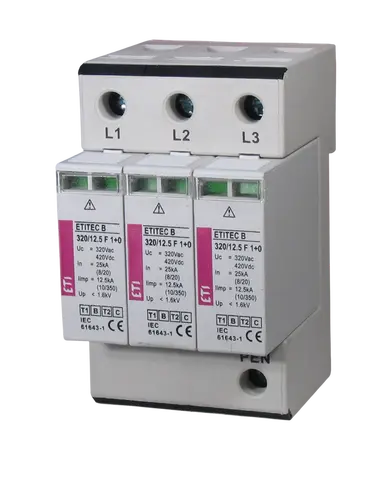

* MODUL ETITEC B 275/12,5 F Surge arrester

ETI Code:: 002440161
Function:: SPD Module
To use with:: ETITEC B F
Current type:: AC
Iimp(10/350) Impulse Current:: 12.5 kA
Nominal Discharge Current (8/20 μs) In:: 25 kA

Product

Net weight of the product: 0.09 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 12 pcs
EAN code for a basic packaging: 3838895634652
Basic packaging weight: 0.9 kg
Basic packaging volume: 63 dm³

Transport Packaging

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895634669
Transport packaging weight: 1.8 kg
Transport packaging volume: 126 dm³
Pallet quantity: 6,000 pcs
Customs tariff: 85363090

System configuration TN-C: ✓
Nominal voltage AC: 230 V
Test class: Type 1
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Lightning impulse current (10/350 µs): 12.5 kA
System configuration TN-S: ✓
Voltage protection level: 1.6 kV
System configuration TN: ✓
Number of poles: 1
System configuration TT: ✓
Signalling at the device: Optical
Max. continuous voltage AC: 275 V

ETIM Classification – Version 9.0
