002440553

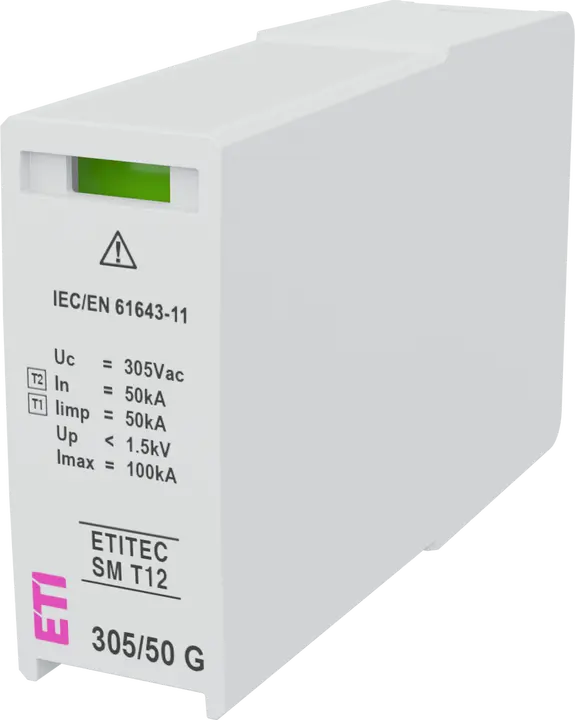

Image of MOD.ETITEC SM T12 305/50 G

MOD.ETITEC SM T12 305/50 G Surge arrester

ETI Code:: 002440553
Function:: SPD Module
To use with:: ETITEC SM T12
Current type:: AC
Iimp(10/350) Impulse Current:: 50 kA
Nominal Discharge Current (8/20 μs) In:: 60 kA

Product

Net weight of the product: 0.177 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895841937
Basic packaging weight: 0.105 kg
Basic Packaging Dimensions Height: 99 mm
Basic Packaging Dimensions Width: 24 mm
Basic Packaging Dimensions Depth: 50 mm
Basic packaging volume: 0.119 dm³

Transport Packaging

Transport packaging quantity: 28 pcs
EAN code for a transport packaging: 3838895841944
Transport packaging weight: 3.021 kg
Transport Packaging Dimensions Height: 109 mm
Transport Packaging Dimensions Width: 352 mm
Transport Packaging Dimensions Depth: 115 mm
Transport packaging volume: 4.412 dm³
Pallet quantity: 6,328 pcs
Customs tariff: 85363090

System configuration TN-C: ✓
Nominal voltage AC: 230 V
Test class: Type 1 + 2
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Lightning impulse current (10/350 µs): 50 kA
Specific energy (W/R): 625 kJ/Ohm
System configuration TN-S: ✓
Voltage protection level: 1.5 kV
System configuration TN: ✓
Number of poles: 1
System configuration TT: ✓
Signalling at the device: Optical
Max. continuous voltage AC: 305 V

ETIM Classification – Version 9.0
