002440576

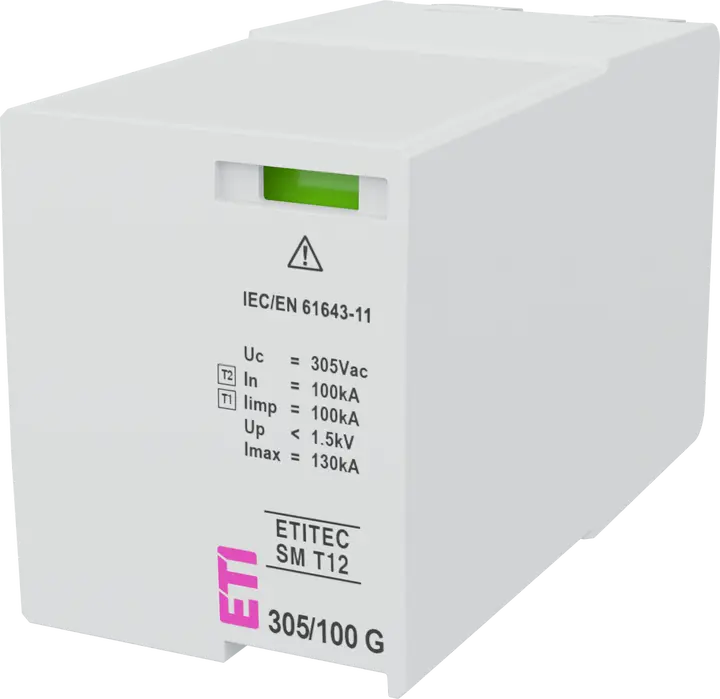

Image of MOD. ETITEC SM T12 305/100 G

MOD. ETITEC SM T12 305/100 G Surge arrester

ETI Code:: 002440576
Function:: SPD Module
To use with:: ETITEC SM T12
Current type:: AC
Iimp(10/350) Impulse Current:: 100 kA
Nominal Discharge Current (8/20 μs) In:: 60 kA
Max. Discharge current Imax, 8/20:: 100 kA

Accessories

Product

Net weight of the product: 0.177 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895847618
Basic packaging weight: 0.103 kg
Basic Packaging Dimensions Height: 91 mm
Basic Packaging Dimensions Width: 41 mm
Basic Packaging Dimensions Depth: 48 mm
Basic packaging volume: 0.179 dm³

Transport Packaging

Transport packaging quantity: 9 pcs
EAN code for a transport packaging: 3838895847625
Transport packaging weight: 1.008 kg
Transport Packaging Dimensions Height: 109 mm
Transport Packaging Dimensions Width: 352 mm
Transport Packaging Dimensions Depth: 115 mm
Transport packaging volume: 4.412 dm³
Pallet quantity: 2,034 pcs
Customs tariff: 85363090

System configuration TN-C: ✓
Nominal voltage AC: 230 V
Test class: Type 1 + 2
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 2 modular spacing
Lightning impulse current (10/350 µs): 100 kA
Specific energy (W/R): 2,500 kJ/Ohm
System configuration TN-S: ✓
Voltage protection level: 1.5 kV
System configuration TN: ✓
Number of poles: 1
System configuration TT: ✓
Signalling at the device: Optical
Max. continuous voltage AC: 305 V

ETIM Classification – Version 9.0

Accessories 2 All Accessories

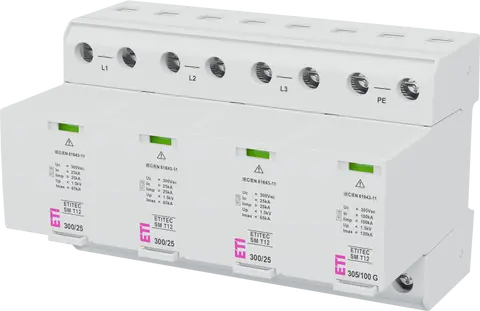

ETITEC SM T12 300/25 3+1
