002440508

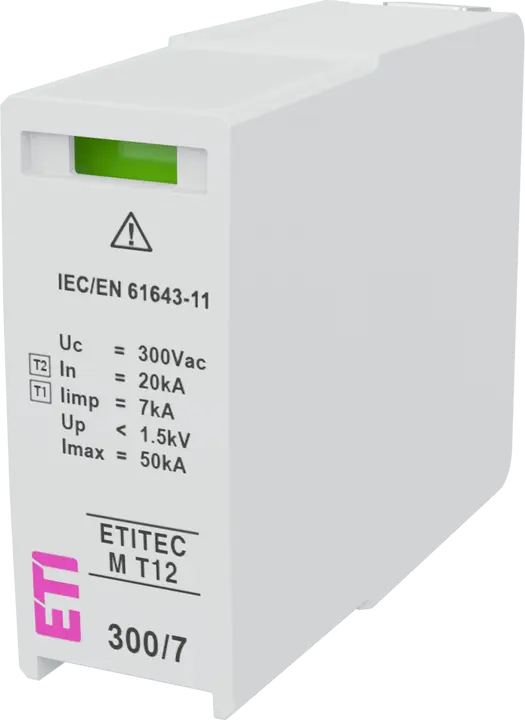

MOD.ETITEC M T12 300/7 Surge arrester
- ETI Code:
- 002440508
- Function:
- SPD Module
- To use with:
- ETITEC M T12
- Current type:
- AC
- Iimp(10/350) Impulse Current:
- 7 kA
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
1 Documents
18 Logistics
Product
- Net weight of the product
- 0.107 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895839316
- Basic packaging weight
- 0.118 kg
- Basic Packaging Dimensions Height
- 50 mm
- Basic Packaging Dimensions Width
- 24 mm
- Basic Packaging Dimensions Depth
- 72 mm
- Basic packaging volume
- 0.086 dm³
Transport Packaging
- Transport packaging quantity
- 28 pcs
- EAN code for a transport packaging
- 3838895839323
- Transport packaging weight
- 3.625 kg
- Transport Packaging Dimensions Height
- 115 mm
- Transport Packaging Dimensions Width
- 109 mm
- Transport Packaging Dimensions Depth
- 352 mm
- Transport packaging volume
- 4.412 dm³
- Pallet quantity
- 4,620 pcs
- Customs tariff
- 85363090
15 ETIM
- System configuration TN-C
- ✓
- Nominal voltage AC
- 230 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Lightning impulse current (10/350 µs)
- 7 kA
- Specific energy (W/R)
- 12.25 kJ/Ohm
- System configuration TN-S
- ✓
- Voltage protection level
- 1.5 kV
- System configuration TN
- ✓
- Number of poles
- 1
- System configuration TT
- ✓
- Signalling at the device
- Optical
- Max. continuous voltage AC
- 300 V
ETIM Classification – Version 9.0
