002440416

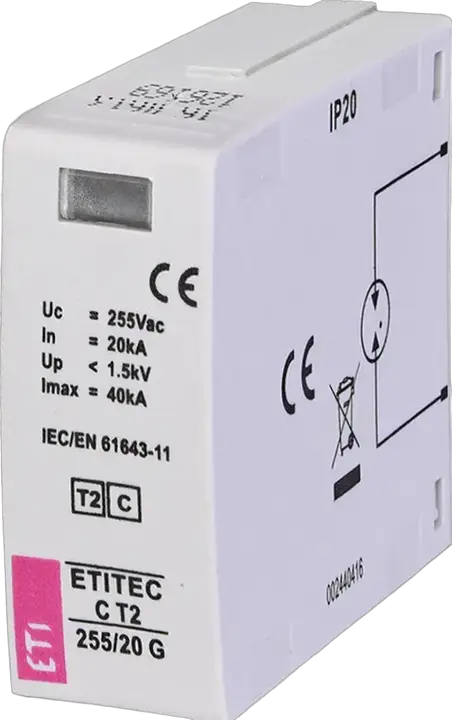

MOD. ETITEC C T2 255/20 G Surge arrester
- ETI Code:
- 002440416
- Function:
- SPD Module
- To use with:
- ETITEC C T2
- Current type:
- AC
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
15 Logistics
Product
- EAN code for a single product
- 3838895773146
- Net weight of the product
- 0.036 kg
- Net width
- 17.8 mm
- Net height
- 46.6 mm
- Net depth
- 52 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895773153
- Transport packaging weight
- 0.464 kg
- Transport Packaging Dimensions Height
- 77 mm
- Transport Packaging Dimensions Width
- 113 mm
- Transport Packaging Dimensions Depth
- 99 mm
- Transport packaging volume
- 0.861 dm³
- Pallet quantity
- 13,920 pcs
- Customs tariff
- 85363090
15 ETIM
- System configuration TN-C
- ✓
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 230 V
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Short-circuit breaking capacity (Isccr)
- 25 kA
- System configuration TN-S
- ✓
- Voltage protection level
- 1.5 kV
- System configuration TN
- ✓
- System configuration TT
- ✓
- Signalling at the device
- Optical
- Category type 2
- ✓
- Max. continuous voltage AC
- 255 V
- Nominal discharge surge current (8/20)
- 20 kA
ETIM Classification – Version 9.0
2 Diagrams
2 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
18 Tags
002440416Surge arresterMOD. ETITEC C T2 255/20 GETITECSurge arrestersSurge arrestersETITEC C T2ETITEC C T2ETITEC C T2InternationalSurge arresters ETITECAC surge arrestersAccessoriesCurrent type: ACFunction: SPD ModuleTo use with: ETITEC C T2Nominal Discharge Current (8/20 μs) In: 20 kASurge arrester TOWAR To use with: ETITEC C T2 Current type: AC Nominal Discharge Current (8/20 μs) In: 20 kA
Accessories 21 All Accessories
Similar Products 39 All Products
002440414
MOD. ETITEC C T2 275/20
- Class name
- Surge arrester
- Function
- SPD Module
- To use with
- ETITEC C T2
- Current type
- AC
- Iimp(10/350) Impulse Current
002440415
MOD. ETITEC C T2 440/20
- Class name
- Surge arrester
- Function
- SPD Module
- To use with
- ETITEC C T2
- Current type
- AC
- Iimp(10/350) Impulse Current
002440421
MOD.ETITEC D T3 275/3
- Class name
- Surge arrester
- Function
- SPD Module
- To use with
- ETITEC D T3
- Current type
- AC
- Iimp(10/350) Impulse Current
002440422
MOD.ETITEC D T3 440/3
- Class name
- Surge arrester
- Function
- SPD Module
- To use with
- ETITEC D T3
- Current type
- AC
- Iimp(10/350) Impulse Current
002440508
MOD.ETITEC M T12 300/7
- Class name
- Surge arrester
- Function
- SPD Module
- To use with
- ETITEC M T12
- Current type
- AC
- Iimp(10/350) Impulse Current
- 7
002440552
MOD.ETITEC SM T12 300/12,5
- Class name
- Surge arrester
- Function
- SPD Module
- To use with
- ETITEC SM T12
- Current type
- AC
- Iimp(10/350) Impulse Current
- 12.5
002440553

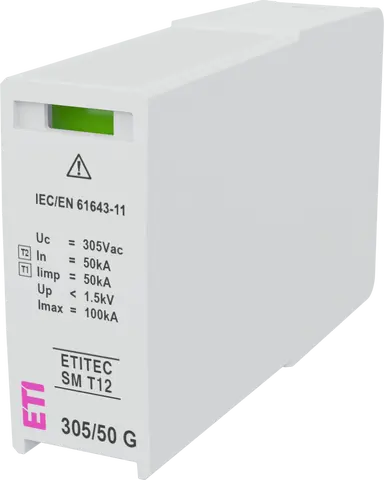

MOD.ETITEC SM T12 305/50 G
- Class name
- Surge arrester
- Function
- SPD Module
- To use with
- ETITEC SM T12
- Current type
- AC
- Iimp(10/350) Impulse Current
- 50
002440575

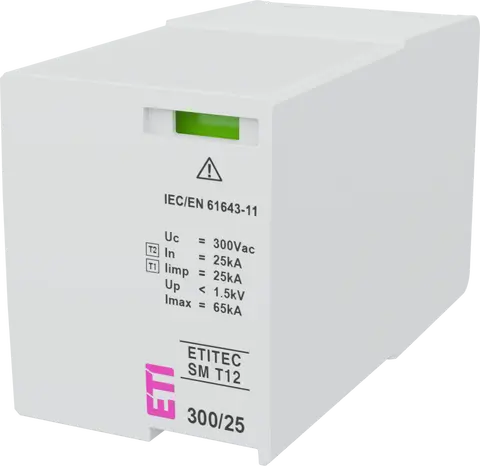

MOD. ETITEC SM T12 300/25
- Class name
- Surge arrester
- Function
- SPD Module
- To use with
- ETITEC SM T12 3+0, 3+1, 4+0
- Current type
- AC
- Iimp(10/350) Impulse Current
- 25
002440576

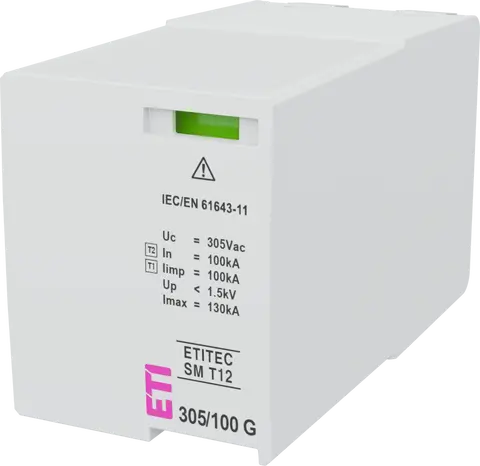

MOD. ETITEC SM T12 305/100 G
