002440335
Obsolete

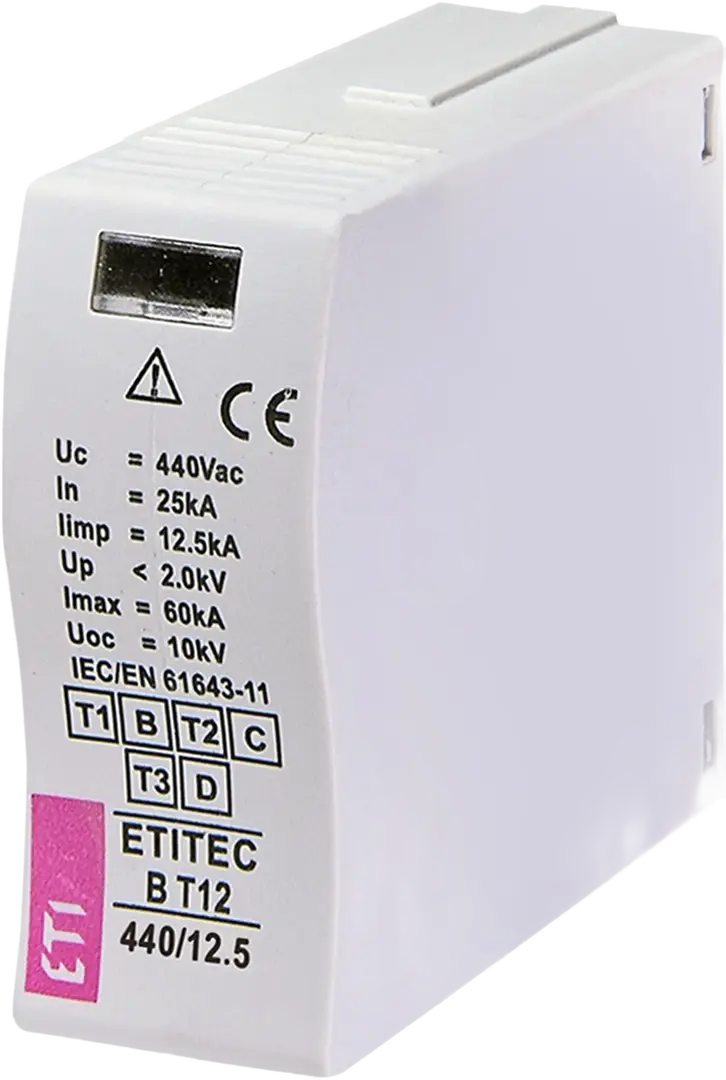

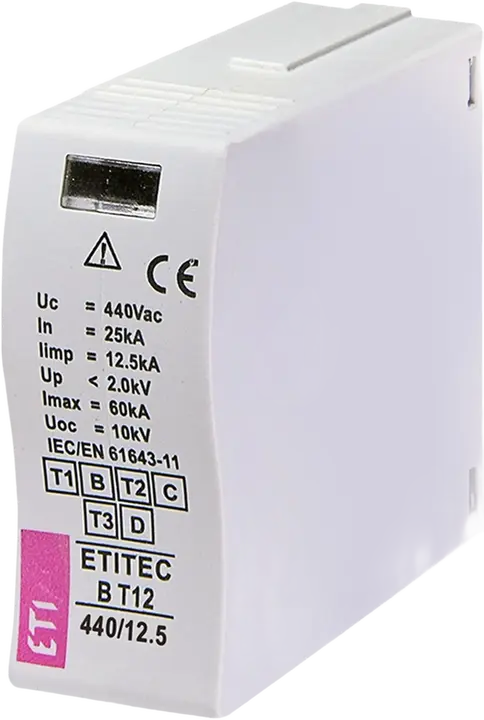

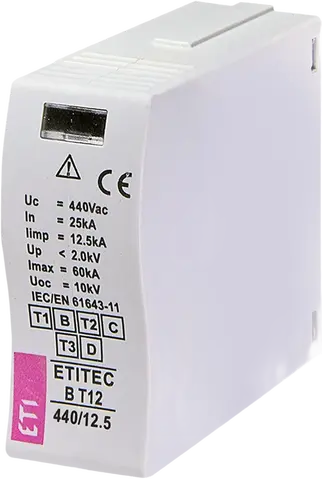

*MOD.ETITEC B T12 440/12,5 Surge arrester
- ETI Code:
- 002440335
- Function:
- SPD Module
- To use with:
- ETITEC B T12
- Current type:
- AC
- Iimp(10/350) Impulse Current:
- 12.5 kA
- Nominal Discharge Current (8/20 μs) In:
- 25 kA
- Max. Discharge current Imax, 8/20:
- 60 kA
15 Logistics
Product
- EAN code for a single product
- 3838895767206
- Net weight of the product
- 102 g
- Net width
- 17.8 mm
- Net height
- 46.6 mm
- Net depth
- 61.5 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895767213
- Transport packaging weight
- 1.481 kg
- Transport Packaging Dimensions Height
- 298 mm
- Transport Packaging Dimensions Width
- 112 mm
- Transport Packaging Dimensions Depth
- 79 mm
- Transport packaging volume
- 2.637 dm³
- Pallet quantity
- 4,032 pcs
- Customs tariff
- 85363090
13 ETIM
- System configuration TN-C
- ✓
- Nominal voltage AC
- 400 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Lightning impulse current (10/350 µs)
- 12.5 kA
- System configuration TN-S
- ✓
- Number of poles
- 1
- System configuration TT
- ✓
- Signalling at the device
- Optical
- System configuration IT
- ✓
- Max. continuous voltage AC
- 440 V
ETIM Classification – Version 9.0
