002440677

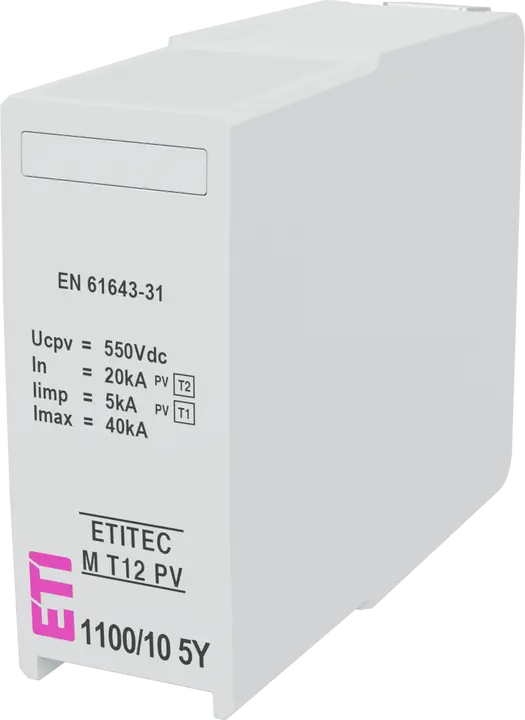

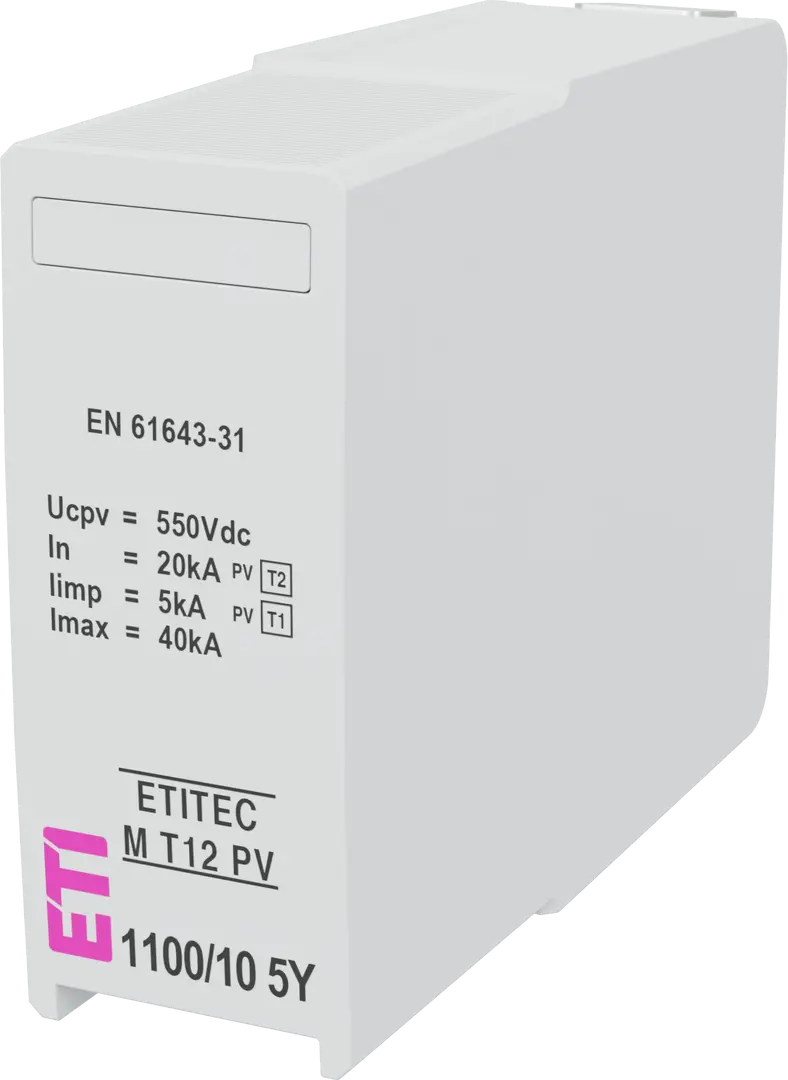

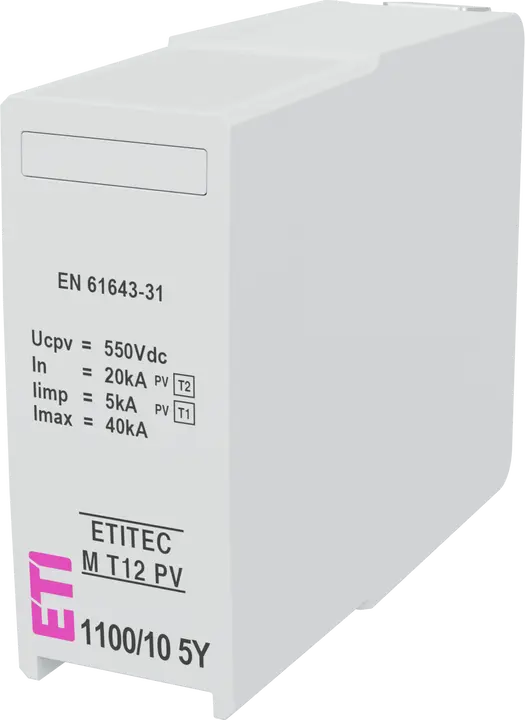

Image of MOD. M T12 PV 550/10 5Y M

MOD. M T12 PV 550/10 5Y M Surge arrester

ETI Code:: 002440677
Function:: SPD Module
To use with:: ETITEC M T12 PV 5Y
Current type:: DC
Iimp(10/350) Impulse Current:: 10 kA
Nominal Discharge Current (8/20 μs) In:: 20 kA

Product

Net weight of the product: 0.083 kg
Net width: 54 mm
Net height: 110 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895927365
Basic packaging weight: 0.09 kg
Basic Packaging Dimensions Height: 72 mm
Basic Packaging Dimensions Width: 24 mm
Basic Packaging Dimensions Depth: 50 mm
Basic packaging volume: 0.086 dm³

Transport Packaging

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895927372
Transport packaging weight: 2.241 kg
Transport Packaging Dimensions Height: 109 mm
Transport Packaging Dimensions Width: 352 mm
Transport Packaging Dimensions Depth: 115 mm
Transport packaging volume: 4.412 dm³
Pallet quantity: 5,424 pcs
Customs tariff: 85363090

Max. continuous voltage DC: 550 V
Test class: Type 1 + 2
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Lightning impulse current (10/350 µs): 5 kA
Number of poles: 1
Signalling at the device: Optical
System configuration DC: ✓
