002440622

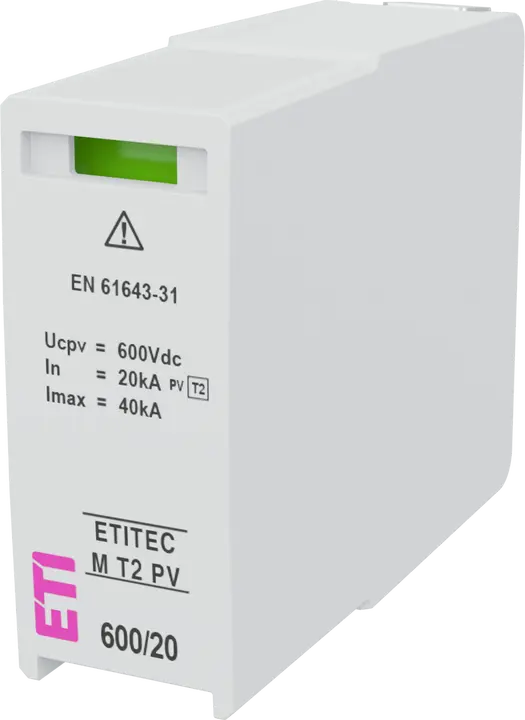

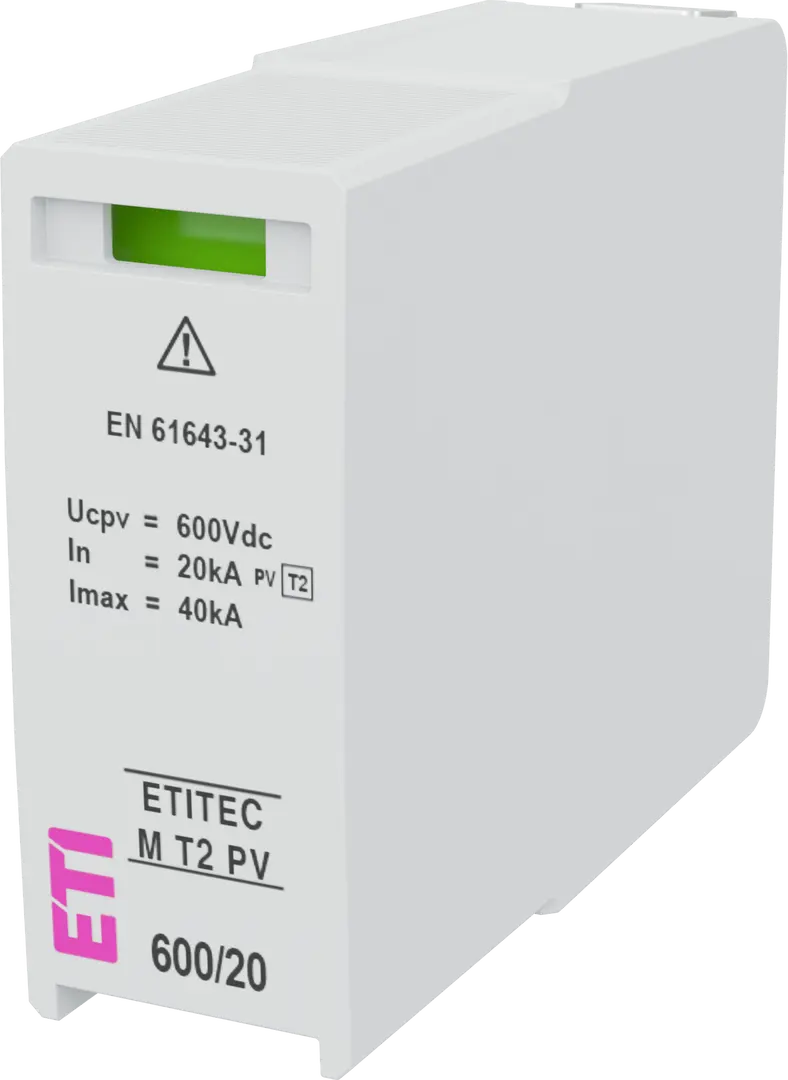

Image of MOD. MT2 PV 600/20

MOD. MT2 PV 600/20 Surge arrester

ETI Code:: 002440622
Function:: SPD Module
To use with:: ETITEC M T2 PV
Current type:: DC
Nominal Discharge Current (8/20 μs) In:: 20 kA

Product

Net weight of the product: 0.061 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895877967
Basic packaging weight: 0.08 kg
Basic Packaging Dimensions Height: 82 mm
Basic Packaging Dimensions Width: 24 mm
Basic Packaging Dimensions Depth: 50 mm
Basic packaging volume: 0.098 dm³

Transport Packaging

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895877974
Transport packaging weight: 2.001 kg
Transport Packaging Dimensions Height: 109 mm
Transport Packaging Dimensions Width: 352 mm
Transport Packaging Dimensions Depth: 115 mm
Transport packaging volume: 4.412 dm³
Pallet quantity: 5,424 pcs
Customs tariff: 85363090

Max. discharge surge current (8/20): 40 kA
Max. continuous voltage DC: 600 V
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Short-circuit breaking capacity (Isccr): 11 kA
Signalling at the device: Optical
Category type 2: ✓
Nominal discharge surge current (8/20): 20 kA
System configuration DC: ✓
