002440435

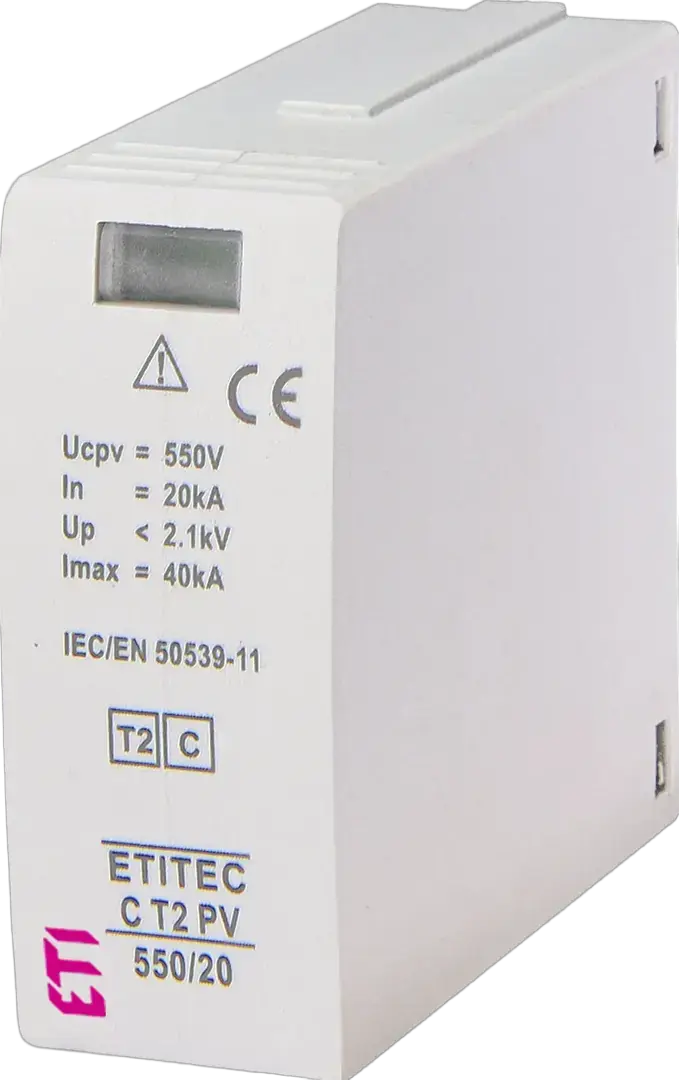

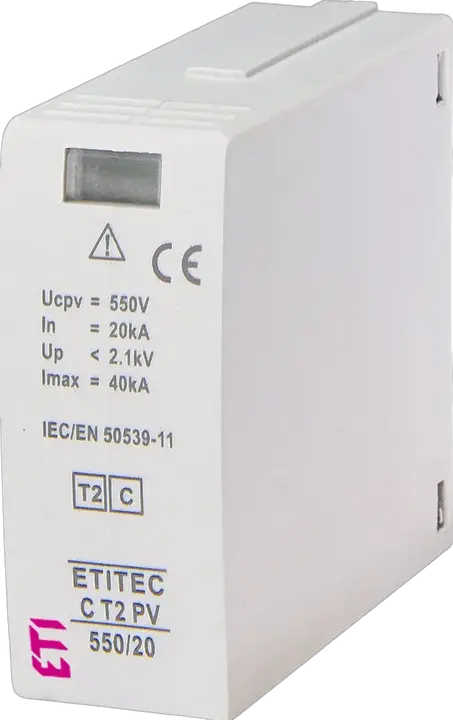

*MOD.ETITEC C T2 PV 550/20 Surge arrester
- ETI Code:
- 002440435
- Function:
- SPD Module
- To use with:
- ETITEC C T2 PV
- Current type:
- DC
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
3 Documents
12 Logistics
Product
- EAN code for a single product
- 3838400166647
- Net weight of the product
- 0.058 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895784586
- Transport packaging weight
- 0.064 kg
- Transport Packaging Dimensions Height
- 62 mm
- Transport Packaging Dimensions Width
- 47 mm
- Transport Packaging Dimensions Depth
- 219 mm
- Transport packaging volume
- 0.638 dm³
- Pallet quantity
- 15,120 pcs
- Customs tariff
- 85363090
10 ETIM
- Max. discharge surge current (8/20)
- 40 kA
- Max. continuous voltage DC
- 550 V
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Short-circuit breaking capacity (Isccr)
- 0.1 kA
- Signalling at the device
- Optical
- Category type 2
- ✓
- Nominal discharge surge current (8/20)
- 20 kA
- System configuration DC
- ✓
ETIM Classification – Version 9.0
