This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.

002440434 Obsolete

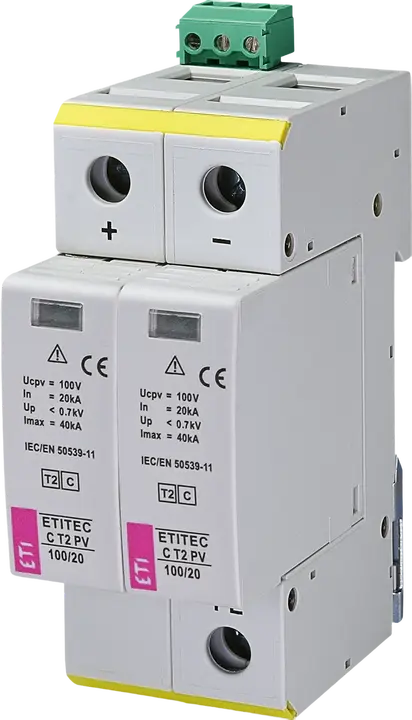

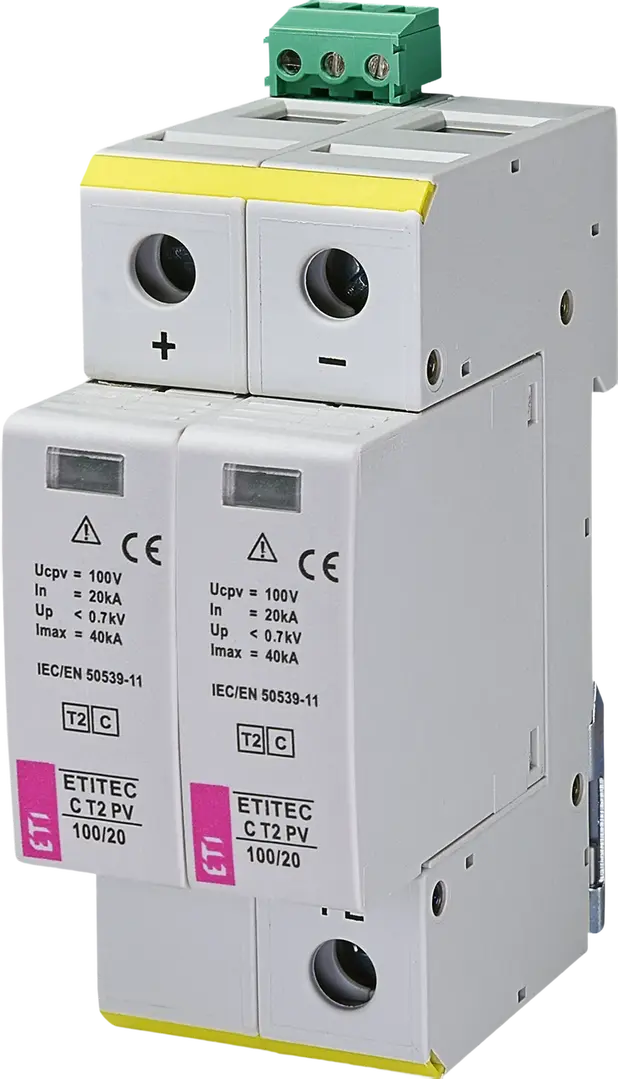

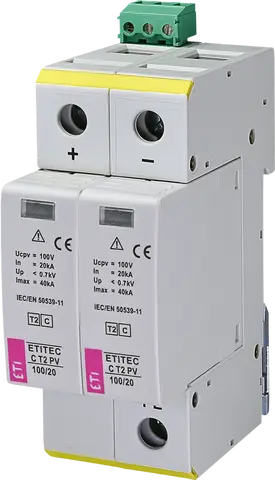

Image of * MOD.ETITEC C T2 PV 100/20

* MOD.ETITEC C T2 PV 100/20 Surge arrester

ETI Code:: 002440434
Function:: SPD Module
To use with:: ETITEC C T2 PV
Current type:: DC
Nominal Discharge Current (8/20 μs) In:: 20 kA

Product

Net weight of the product: 0.046 kg
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895784579
Transport packaging weight: 0.051 kg
Transport Packaging Dimensions Height: 62 mm
Transport Packaging Dimensions Width: 47 mm
Transport Packaging Dimensions Depth: 219 mm
Transport packaging volume: 0.638 dm³
Pallet quantity: 15,120 pcs
Customs tariff: 85363090

Max. discharge surge current (8/20): 40 kA
Max. continuous voltage DC: 100 V
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Short-circuit breaking capacity (Isccr): 0.1 kA
Signalling at the device: Optical
Category type 2: ✓
Nominal discharge surge current (8/20): 20 kA
System configuration DC: ✓

ETIM Classification – Version 9.0
