Filters
Filter type
Clear all
Expand all
Open all
Current setting range (A)
Short-circuit release Irm (A)
Rated operation power at AC3 (kW)
Motor Protective circuit breaker
Items:
0
004646618
MSP0-0,6
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,4 - 0,6
- Short-circuit release Irm (A):
- 7,2
- Rated operation power at AC3 (kW):
- 0,12…0,18
004646619
MSP0-1,0
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,6 - 1,0
- Short-circuit release Irm (A):
- 12
- Rated operation power at AC3 (kW):
- 0,25
004646620
MSP0-1,6
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 1,0 - 1,6
- Short-circuit release Irm (A):
- 19
- Rated operation power at AC3 (kW):
- 0,37...0,55
004646621
MSP0-2,4
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 1,6 - 2,4
- Short-circuit release Irm (A):
- 29
- Rated operation power at AC3 (kW):
- 0,75
004646622
MSP0-4,0
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 2,4 - 4,0
- Short-circuit release Irm (A):
- 48
- Rated operation power at AC3 (kW):
- 1,1...1,5
004646623
MSP0-6,0
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 4,0 - 6,0
- Short-circuit release Irm (A):
- 72
- Rated operation power at AC3 (kW):
- 2,2
004646624
MSP0-10
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 6,0 - 10
- Short-circuit release Irm (A):
- 120
- Rated operation power at AC3 (kW):
- 3…4
004646625
MSP0-16
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 10-16
- Short-circuit release Irm (A):
- 192
- Rated operation power at AC3 (kW):
- 7,5
004646626
MSP0-20
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 14 - 20
- Short-circuit release Irm (A):
- 240
- Rated operation power at AC3 (kW):
- 7,5
004646627
MSP0-25
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 18 - 25
- Short-circuit release Irm (A):
- 300
- Rated operation power at AC3 (kW):
- 11
004646628
MSP1-32
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 22 - 32
- Short-circuit release Irm (A):
- 384
- Rated operation power at AC3 (kW):
- 15
004646629
MSP1-40
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 28 - 40
- Short-circuit release Irm (A):
- 480
- Rated operation power at AC3 (kW):
- 18,5
004646630
MSP1-52
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 36 - 52
- Short-circuit release Irm (A):
- 600
- Rated operation power at AC3 (kW):
- 22
004648015
MPE25-40
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 32-40
- Short-circuit release Irm (A):
- 520
- Rated operation power at AC3 (kW):
- 18,5
004648001
MPE25-0,16
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,1 - 0,16
- Short-circuit release Irm (A):
- 2,08
004648002
MPE25-0,25
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,16 - 0,25
- Short-circuit release Irm (A):
- 3,25
- Rated operation power at AC3 (kW):
- 0,06
004648003
MPE25-0,40
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,25 - 0,4
- Short-circuit release Irm (A):
- 5,2
- Rated operation power at AC3 (kW):
- 0,09
004648004
MPE25-0,63
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,4 - 0,63
- Short-circuit release Irm (A):
- 8,2
- Rated operation power at AC3 (kW):
- 0,12
004648005
MPE25-1,0
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,63 - 1,0
- Short-circuit release Irm (A):
- 13
- Rated operation power at AC3 (kW):
- 0,25
004648006
MPE25-1,6
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 1,0 - 1,6
- Short-circuit release Irm (A):
- 20,8
- Rated operation power at AC3 (kW):
- 0,37
004648007
MPE25-2,5
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 1,6 - 2,5
- Short-circuit release Irm (A):
- 32,5
- Rated operation power at AC3 (kW):
- 0,75
004648008
MPE25-4,0
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 2,5 - 4,0
- Short-circuit release Irm (A):
- 52
- Rated operation power at AC3 (kW):
- 1,5
004648009
MPE25-6,3
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 4,0 - 6,3
- Short-circuit release Irm (A):
- 82
- Rated operation power at AC3 (kW):
- 2,2
004648010
MPE25-10
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 6,3 - 10
- Short-circuit release Irm (A):
- 130
- Rated operation power at AC3 (kW):
- 4,5
004648012
MPE25-20
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 16 - 20
- Short-circuit release Irm (A):
- 260
- Rated operation power at AC3 (kW):
- 9,2
004648013
MPE25-25
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 20 - 25
- Short-circuit release Irm (A):
- 325
- Rated operation power at AC3 (kW):
- 11
004648014
MPE25-32
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 25 - 32
- Short-circuit release Irm (A):
- 416
- Rated operation power at AC3 (kW):
- 15
004648011
MPE25-16
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 10-16
- Short-circuit release Irm (A):
- 208
- Rated operation power at AC3 (kW):
- 7,5
004648018
MPE80-80
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 65-80
- Short-circuit release Irm (A):
- 1040
- Rated operation power at AC3 (kW):
- 37
004648016
MPE80-50
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 40-50
- Short-circuit release Irm (A):
- 650
- Rated operation power at AC3 (kW):
- 22
004648017
MPE80-65
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 50-65
- Short-circuit release Irm (A):
- 845
- Rated operation power at AC3 (kW):
- 30
004600010
MS25-0,16
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,1 - 0,16
- Short-circuit release Irm (A):
- 2,2
- Rated operation power at AC3 (kW):
- 0,02
004600020
MS25-0,25
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,16 - 0,25
- Short-circuit release Irm (A):
- 3,5
- Rated operation power at AC3 (kW):
- 0,06
004600030

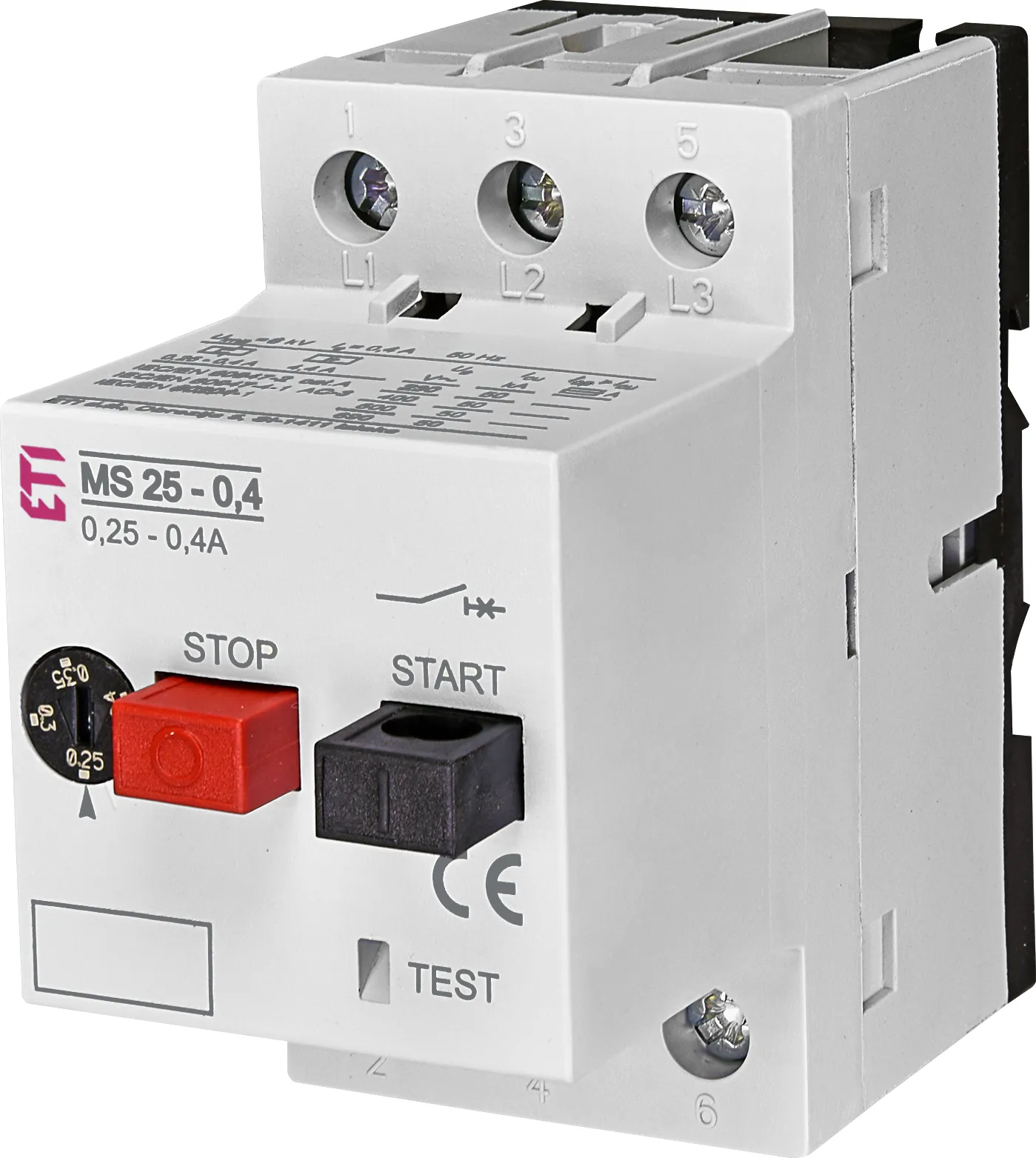

MS25-0,4
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,25 - 0,4
- Short-circuit release Irm (A):
- 6
- Rated operation power at AC3 (kW):
- 0,09
004600040
MS25-0,63
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,4 - 0,63
- Short-circuit release Irm (A):
- 9
- Rated operation power at AC3 (kW):
- 0,12
004600050
MS25-1
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 0,63 - 1,0
- Short-circuit release Irm (A):
- 14
- Rated operation power at AC3 (kW):
- 0,18…0,25
004600060
MS25-1,6
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 1,0 - 1,6
- Short-circuit release Irm (A):
- 23
- Rated operation power at AC3 (kW):
- 0,37…0,55
004600070
MS25-2,5
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 1,6 - 2,5
- Short-circuit release Irm (A):
- 35
- Rated operation power at AC3 (kW):
- 0,75…1,1
004600080

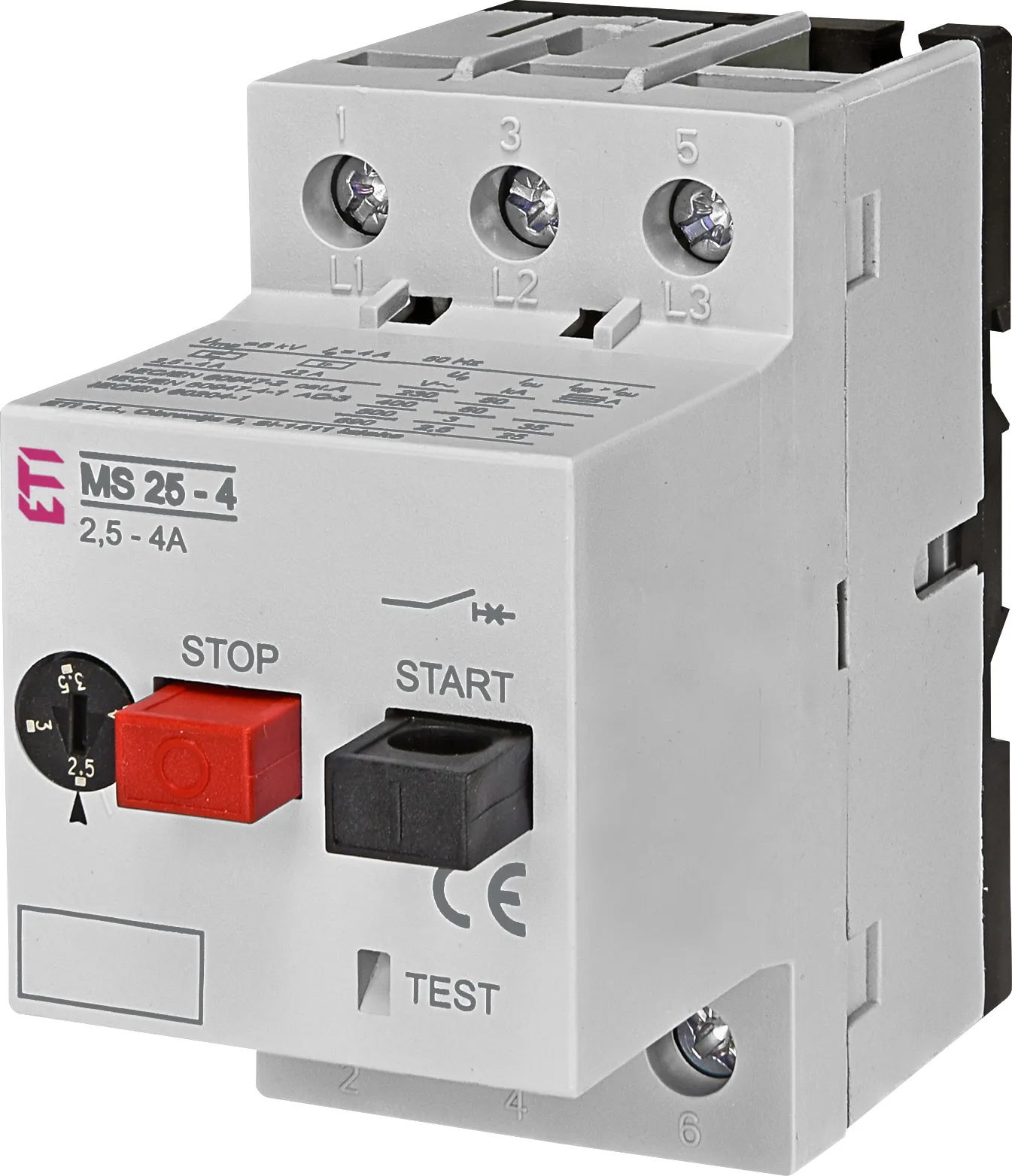

MS25-4
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 2,5 - 4,0
- Short-circuit release Irm (A):
- 56
- Rated operation power at AC3 (kW):
- 1,1…1,5
004600090

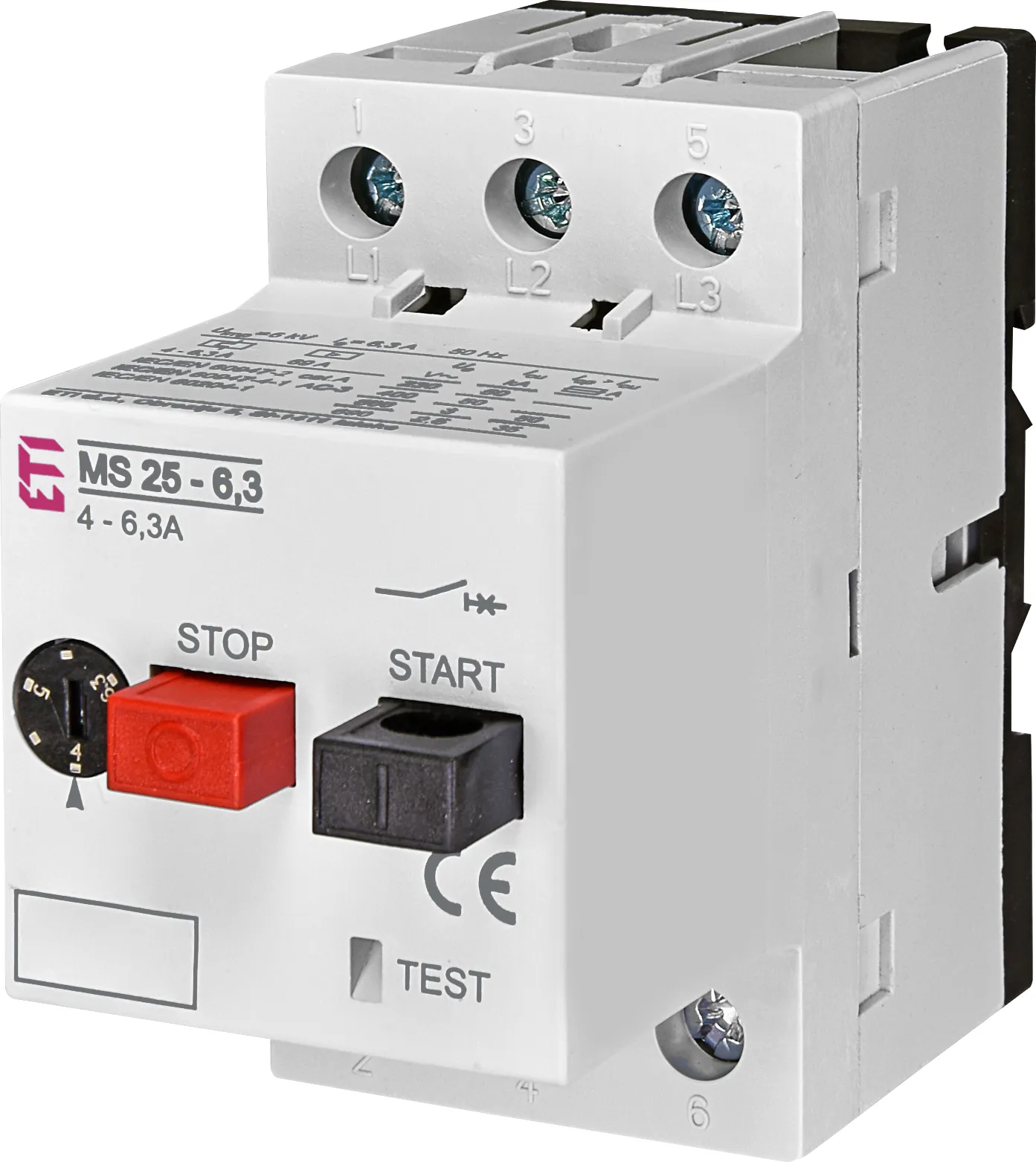

MS25-6,3
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 4,0 - 6,3
- Short-circuit release Irm (A):
- 88
- Rated operation power at AC3 (kW):
- 2,2…2,5
