Fuse link CH8x32 gG 2A/400V 002651002
Specifications
- ETI Code:
- 002651002
- Description:
- CH8x32 gG 2A/400V
- Class name:
- Fuse link
- Type:
- CH
- Size:
- 8x32
- Rated current (A):
- 2
- Rated AC voltage (V):
- 400
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 20
- Application:
- For cable protection
- Power dissipation (W):
- 0,45
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- Customs tariff
- 85361010
- logis_net_width
- 9 mm
- logis_net_height
- 32 mm
- logis_net_depth
- 9 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400096456
- Basic packaging weight
- 0.046 kg
Transport packaging
- Transport packaging quantity
- 2500
- EAN code for a transport packaging
- 3838400094216
- Transport packaging weight
- 12.026 kg
- Pallet quantity
- 80000
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Voltage type
- AC
- Rated current
- 2A
- Rated voltage
- 400V

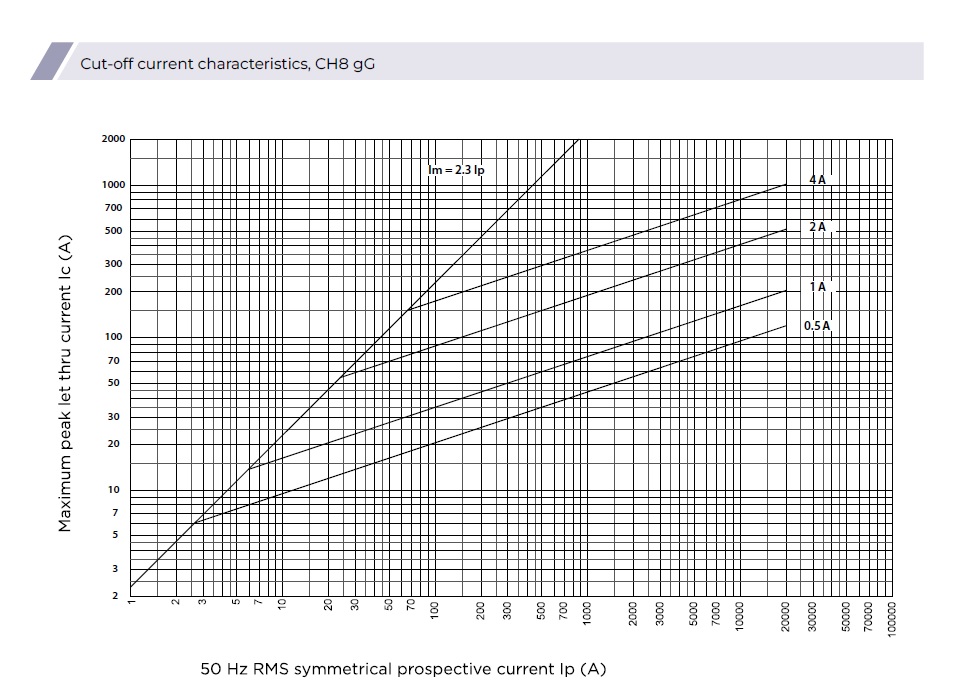

Images & Diagrams
