002471819

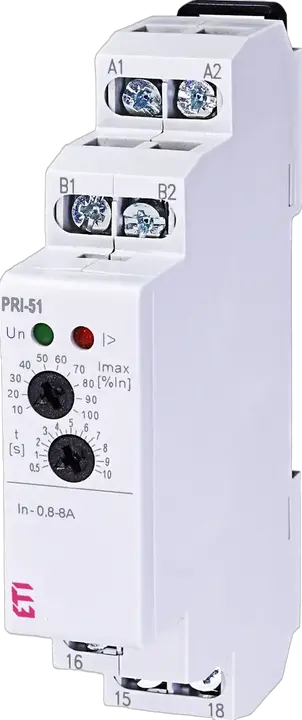

PRI-51/8 Control relay
- ETI Code:
- 002471819
- Type of Installation:
- DIN rail
- Clamping cross-section:
- 0.5-2.5 mm²
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 24-240 V
- Type of Control:
- Alarm and control
- Number of contacts:
- 1
- Voltage type:
- AC/DC
- Application:
- Służy do nadzoru poziomu prądu w jednofazowych obwodach AC
- Maximum load capacity at AC1:
- 2,000 VA
- IP rating:
- IP40, IP10
- Rated current:
- 8 A
- Type of contacts:
- 1xCO
- No. of inputs:
- 4
- No. of NC contacts:
- 1
- No. of CO contacts:
- 1
- No. of NO contacts:
- 1
- DC rated control supply voltage Uc:
- 24 V
7 Documents
21 Logistics
Product
- Net weight of the product
- 0.07 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.26 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895424031
- Basic packaging weight
- 0.06 kg
- Basic Packaging Dimensions Height
- 25 mm
- Basic Packaging Dimensions Width
- 97 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.17 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895424048
- Transport packaging weight
- 0.7 kg
- Transport Packaging Dimensions Height
- 102 mm
- Transport Packaging Dimensions Width
- 284 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 2.173 dm³
- Pallet quantity
- 4,600 pcs
- Customs tariff
- 85364900
14 ETIM
- Width
- 18 mm
- Voltage type (operating voltage)
- AC/DC
- Voltage type (supply voltage)
- AC/DC
- Single-phase under current possible
- ✓
- Rated switch current
- 8 A
- Depth
- 65 mm
- Type of electric connection
- Clip connection
- Single-phase overcurrent possible
- ✓
- Number of contacts as change-over contact
- 1
- Height
- 90 mm
- Current measuring range(Min)
- 0.8 A
- Supply voltage AC 50 Hz(Min)
- 24 V
- Supply voltage AC 50 Hz(Max)
- 240 V
- Current measuring range(Max)
- 8
ETIM Classification – Version 9.0
