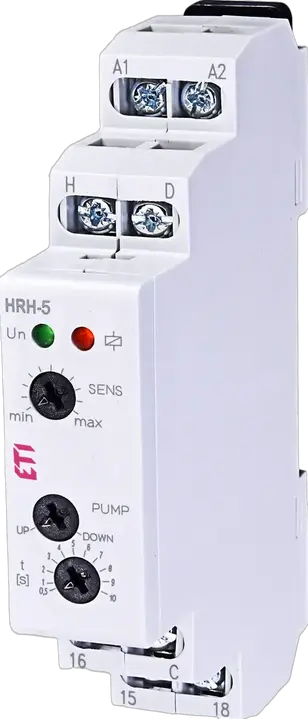

HRH-5 Control relay

ETI Code:: 002471715
Type of Installation:: DIN rail
Clamping cross-section:: 0.5-2.5 mm²
Function:: Monitoring and Control relays
Supply Voltage:: 24-240 V
Type of Control:: Monitoring levels
Number of contacts:: 1
Voltage type:: AC/DC
Application:: Służy do monitorowania poziomu cieczy w zbiornikach, studniach i przepompowniach oraz do automatycznego sterowania pracą pomp
Maximum load capacity at AC1:: 2,000 VA
IP rating:: IP40, IP10
Rated current:: 8 A
Type of contacts:: 1xCO
To use with:: Współpracuje z sondami poziomu cieczy serii HRH (HRH-10, HRH-15, HRH-20, HRH-30, HRH-40)
No. of NC contacts:: 1
No. of CO contacts:: 1
No. of NO contacts:: 1
DC rated control supply voltage Uc:: 24-240 V

Accessories

Product

Net weight of the product: 0.072 kg
Net width: 17.5 mm
Net height: 91.3 mm
Net depth: 64.26 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895489160
Basic packaging weight: 0.086 kg
Basic Packaging Dimensions Height: 25 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 70 mm
Basic packaging volume: 0.17 dm³

Transport Packaging

Transport packaging quantity: 8 pcs
EAN code for a transport packaging: 3838895494782
Transport packaging weight: 0.688 kg
Transport packaging volume: 1.6 dm³
Pallet quantity: 8,000 pcs
Customs tariff: 85364900

Max. permitted operate delay time: 10 s
Width: 18 mm
Response value sensitivity adjustable: ✓
Physical measurement principle: Conductive
Voltage type (operating voltage): AC/DC
Max. permitted off-delay time: 10 s
Voltage type (supply voltage): AC/DC
Min. adjustable off-delay time: 0.5 s
Min. adjustable operate delay time: 0.5 s
Rated switch current: 8 A
Number of inputs for electrodes: 3
Depth: 65 mm
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 24 V
Operating voltage AC 60 Hz(Min): 24 V
Supply voltage AC 60 Hz(Min): 24 V
Supply voltage DC(Min): 24 V
Operating voltage DC(Min): 24 V
Supply voltage AC 50 Hz(Min): 24 V
Supply voltage AC 50 Hz(Max): 240 V
Operating voltage AC 60 Hz(Max): 230 V
Supply voltage DC(Max): 240 V
Operating voltage AC 50 Hz(Max): 230 V
Supply voltage AC 60 Hz(Max): 240 V
Operating voltage DC(Max): 230 V
