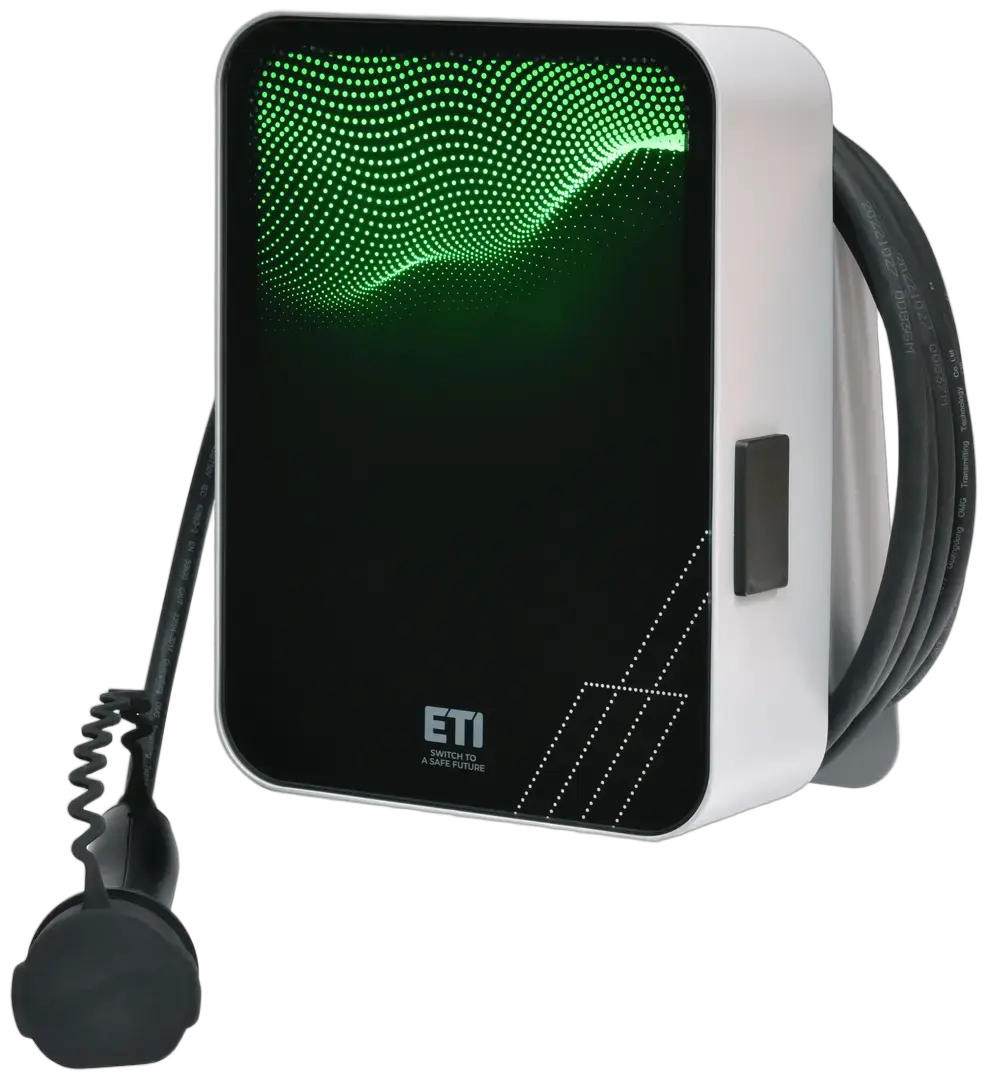

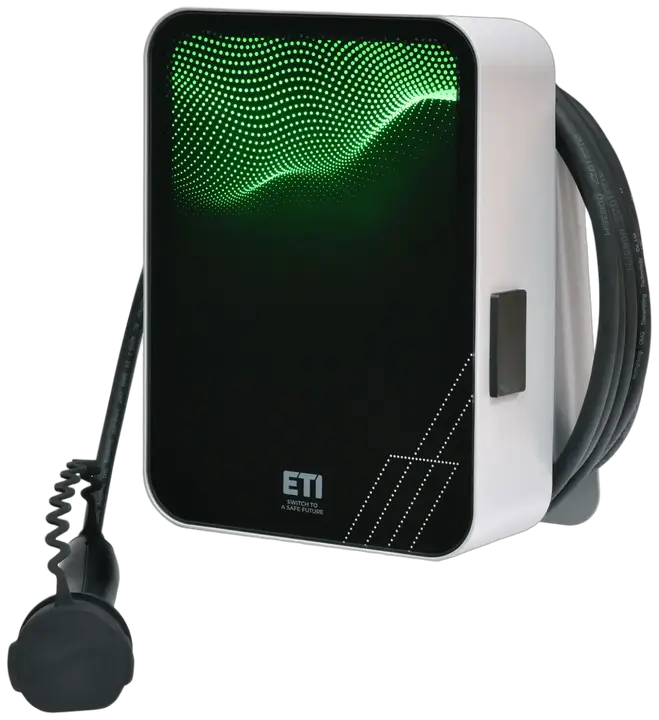

Charging station EVC-HOME11 001800100
Specifications
- ETI Code:
- 001800100
- Description:
- EVC-HOME11
- Class name:
- Charging station
- Rated power (kW):
- 11
- Charging mode:
- MODE 3, CASE C
- Connector standard:
- Type 2
- Type: socket/plug:
- 5m cable with plug
- Network system:
- TN/TT/IT (3P+N+PE), TN/TT/IT (1P+N+PE)
- Rated residual operating current IΔn (A):
- EV type RCD (30mA + 6mA DC)
- Charger Management:
- Fixed od dynamic with energy counter
- Connectivity:
- RS485 (MODBUS)
- IP rating:
- IP54
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400153456
- Net weight of the product
- 9.8 kg
- Customs tariff
- 85437090
- logis_net_width
- 235 mm
- logis_net_height
- 347 mm
- logis_net_depth
- 246 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838400120557
- Transport packaging weight
- 9.8 kg
- Pallet quantity
- 25
ETIM Clasification
- Classification
- EC002883
- Class name
- Charging device E-Mobility
- Number of charging units
- 1
- Max. power per charging point
- 11kW
- Nominal connection power
- 11kW
- Width
- 230mm
- Height
- 320mm
- Depth
- 115/215mm
- Mounting method
- Wall mounting
- Number of vehicle connectors Type 2
- 1
- Number of earth leakage circuit breakers type A
- 1
- Housing material
- Steel
- Degree of protection (IP)
- IP54
- Impact strength
- IK08
EVC-HOME11
